Motore Brose Drive-S 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Batteria Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Display Brose-Marquardt multifunctional display & push-assistance selection unit
Telaio Aluminium frame, CNC parts, Sizes: S – M – L
Forcella Rock Shox Recon RL, 120mm travel
Cambio SRAM SX E-click Eagle12v
Guarnitura MirandaDelta Isis 165mm Asym
Pignoni Sram SX Eagle 12V 11-50
Catena Sram SX Eagle 12V
Freno ant. Sram LEVEL 2 Piston, Hydraulic Disc Brake, 200mm disc
Freno post. Sram LEVEL 2 Piston, Hydraulic Disc Brake, 180mm disc
Pneumatici Schwalbe SMART-SAM, front 29’’x 2.25” / Rear 27.5” x 2.6”
Cerchi e raggi GMP by Fantic, Tubeless ready
Mozzo ant. Sram 716 RS, 110 mm, Boost, thru axle 15mm
Mozzo post. Sram 716 RS, 148 mm, Boost; thru axle 12mm
Manubrio FSA Ø31,8 L.760m Rise15
Attacco manubrio FSA Ø31,8 L.60mm
Tubo sella FSA 400mm
Sella SelleItalia X-Land Flow

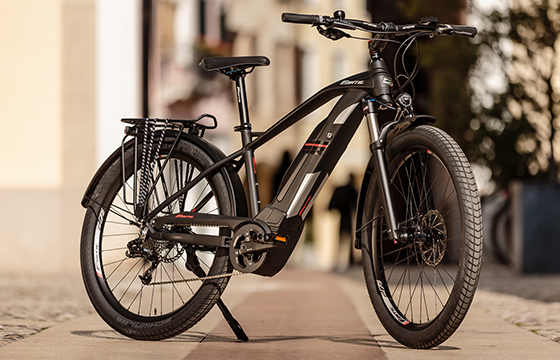

LIVING	CARATTERISTICHE TECNICHE
Motore	Brose Drive-S 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Batteria	Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Display	Brose-Marquardt multifunctional display & push-assistance selection unit
Telaio	Aluminium frame. Sizes: S – M – L
Forcella	SR SUNTOUR XCR34 29’’ – 100mm
Cambio	SRAM GX 10-gear
Guarnitura	Miche 38t Aluminium
Protezione motore	Motor flange integrated in the frame for full motor protection
Pignoni	SRAM PG 1030 10-gear 11-36 teeth
Catena	KMC e-bike edition
Freno ant.	SRAM Level hydraulic, 180mm disc
Freno post.	SRAM Level hydraulic, 160mm disc
Pneumatici	Schwalbe Super Moto da 27,5″ X 2.8
Cerchi e raggi	Aluminium alloy, stainless steel spokes
Mozzo ant.	110mm trough axle 15mm
Mozzo post.	148mm trough axle 12mm
Manubrio	Fantic alloy: rise 700mm
Attacco manubrio	Fantic 80mm
Serie sterzo	FSA No. 57 Orbit semi-integrated 1.5” – 1” 1/8
Sella	Sporturer Talisman Gelflow
Manopole	Fantic
Pedali	NVL 87b in aluminium

FAT SPORT SPECIFICHE TECNICHE
Motore Brose Drive-S 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Batteria Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Display Brose-Marquardt multifunctional display & push-assistance selection unit
Telaio Aluminium frame, CNC parts, Sizes: S – M – L
Forcella Rock Shox Bluto, 120mm travel
Cambio SRAM SX E-click Eagle12v
Guarnitura Miranda Delta Isis 165mm FAT-2 Asym
Pignoni Sram SX Eagle 12V 11-50
Catena Sram SX Eagle 12V
Freno ant. Sram Level, 2P, Hydraulic Disc Brake, 200mm disc
Freno post. Sram Level, 2P, Hydraulic Disc Brake, 180mm disc
Pneumatici Schwalbe JUMBO-JIM, 4″
Cerchi e raggi GPM Fat
Mozzo ant. GpM 150 mm thru axle 15mm
Mozzo post. GPM 197 mm thru axle 12mm
Manubrio FSA Ø31,8 L.760m Rise15
Attacco manubrio FSA Logo Ø31,8 L.60mm
Tubo sella FSA 400mm
Sella SelleItalia X-Land Flow

INTEGRA 150 Trail CARATTERISTICHE TECNICHE
Motore Brose Drive-S 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Batteria Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Display Brose-Marquardt multifunctional display & push-assistance selection unit
Telaio Aluminium Enduro frame, CNC parts, Sizes: S – M – L
Forcella RockShox Recon RL 29″ 150mm
Ammortizzatore RockShox Deluxe Select+ T205x57,5 Air
Cambio SRAM SX E-click Eagle12v
Guarnitura Miranda Delta Isis 165mm
Pignoni Sram SX Eagle 12V 11-50
Catena Sram SX Eagle 12V
Freno ant. Sram Level, 2P, Hydraulic Disc Brake, 200mm disc
Freno post. Sram Level, 2P, Hydraulic Disc Brake, 200mm disc
Pneumatici Schwalbe SMART-SAM, front 29’’x 2.25 / Rear 27.5” x 2.6
Cerchi e raggi GMP by Fantic, Tubeless ready
Mozzo ant. Sram 716 RS, 110 mm, Boost, thru axle 15mm
Mozzo post. Sram 716 RS, 148 mm, Boost; thru axle 12mm
Manubrio FSA Ø31,8 L.760m Rise15
Attacco manubrio FSA Ø31,8 L.60mm
Tubo sella Switch, height-adjustable dropper, S-M(100mm), L(125mm)
Sella SelleItalia X-Land Flow

PASSO GIAU CARATTERISTICHE TECNICHE
Motore Fazua Midmount 36 Volt, Power: 250 Watt, coppia 60 Nm
Batteria Lithium Ion, 36 Volt, 250 Wh
Display Push-assistance selection unit
Telaio Carbon frame. Sizes:S – M – L
Forcella Carbon fork thru axle 12 mm
Cambio Sram Force 22v
Guarnitura Aluminium FSA 36-52
Pignoni Sram Force PG1170 (32-11)
Catena SRAM 11v
Freno ant. Sram Force Hydraulic Disc Brake, 160mm disc
Freno post. Sram Force Hydraulic Disc Brake, 160mm disc
Pneumatici Vittoria – Rubino Pro G+ 700 x 28c
Cerchi e raggi Vision Alu 40mm
Mozzo ant. 100mm trough axle 15mm
Mozzo post. 142mm trough axle 12mm
Manubrio FSA Energy Compact 420mm (size S-M) 440mm (size L)
Attacco manubrio FSA Energy 80mm (size S-M) 100mm (size L)
Tubo sella FSA Energy 27.2mm
Serie sterzo FSA
Sella Fizik Antares
